제품 상세정보
원래 장소: 중국 심천
브랜드 이름: Miracle Bean
인증: CE ROSH EMC
모델 번호: XH-LPV-120W-12
지불과 운송 용어
최소 주문 수량: 1 피스
가격: negotiate
포장 세부 사항: 만화 또는 나무
배달 시간: 5-15 일
지불 조건: T/T, Western Union
공급 능력: 달 당 10000개 부분
1항목 이름: |
전원 공급 장치 |
2Shell Material: |
Aluminium Alloy |
3IP은 분류됩니다: |
IP67/IP65 |
4perating Temperature: |
-20°C To 60°C |
5제품 크기: |
190*49*34mm |
6인증: |
CE / FCC / ROHS |
7utput Power: |
120W |
8Color: |
Silver |
9보호: |
단락 회로 / 과온 / 과부하 |
10능률: |
87.5% |
항목 이름: |
전원 공급 장치 |
Shell Material: |
Aluminium Alloy |
IP은 분류됩니다: |
IP67/IP65 |
perating Temperature: |
-20°C To 60°C |
제품 크기: |
190*49*34mm |
인증: |
CE / FCC / ROHS |
utput Power: |
120W |
Color: |
Silver |
보호: |
단락 회로 / 과온 / 과부하 |
능률: |
87.5% |

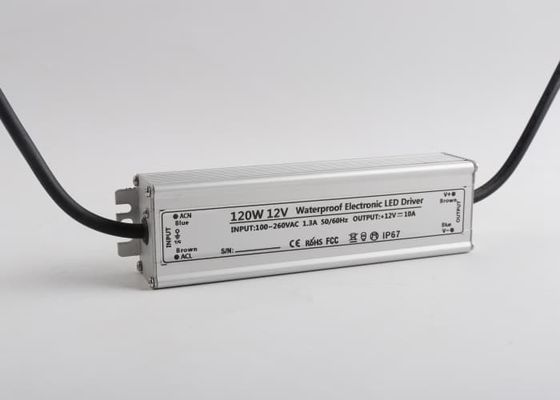

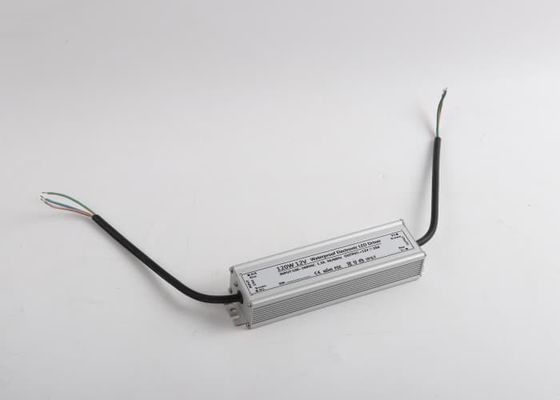

High Efficiency 120W Waterproof Outdoor Indoor Led Lights Power Supply Driver with DC12V Output
Led power supply Product Description
| Modle | XH-LPV-120W-12 |
| Output current range | 12V |
| DC output power | 120W |
| AC Input Current |
2.4A/115V,1.4A/230VAC |
| Store temperature and humidity | -40~+85°10-95% RH |
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing |
| Dimesion |
190*49*34mm(L*W*H) |
| Efficiency |
87.5% |
| Weight |
0.65kg |
Description
The XH-LPV-120W series is a waterproof AC-to-DC LED driver power supply, designed with constant voltage, constant current, and constant power output. It adopts a universal international AC input voltage range, and the entire series provides output voltages of 12V, 15V, 24V, 27V, 36V, and 48V.
With a conversion efficiency of up to 90%, it features a fanless design, allowing it to operate within a case temperature range of -20°C to +60°C under natural air-cooled heat dissipation.
Equipped with a metal housing and a high protection rating of IP65/IP67, the XH-LPV-120W series is suitable for both indoor and outdoor applications.
