제품 상세정보
원래 장소: 중국 심천
브랜드 이름: Miracle Bean
인증: CE ROSH EMC
모델 번호: XH-LPV-250W
지불과 운송 용어
최소 주문 수량: 1 피스
가격: negotiate
포장 세부 사항: 만화 또는 나무
배달 시간: 5-15 일
지불 조건: T/T, Western Union
공급 능력: 한 달에 10000 피스
1항목 이름: |
전원 공급 장치 |
2쉘 재료: |
알루미늄 합금 |
3IP 클래스: |
IP67/IP65 |
4멸망 온도: |
-20 ° C ~ 60 ° C |
5제품 크기: |
205*69*43mm |
6자격증: |
CE/FCC/ROHS |
7utput 전원: |
250W |
8색상: |
은 |
9보호: |
단락/초과 온도/오버 하중 |
10능률: |
91% |
항목 이름: |
전원 공급 장치 |
쉘 재료: |
알루미늄 합금 |
IP 클래스: |
IP67/IP65 |
멸망 온도: |
-20 ° C ~ 60 ° C |
제품 크기: |
205*69*43mm |
자격증: |
CE/FCC/ROHS |
utput 전원: |
250W |
색상: |
은 |
보호: |
단락/초과 온도/오버 하중 |
능률: |
91% |

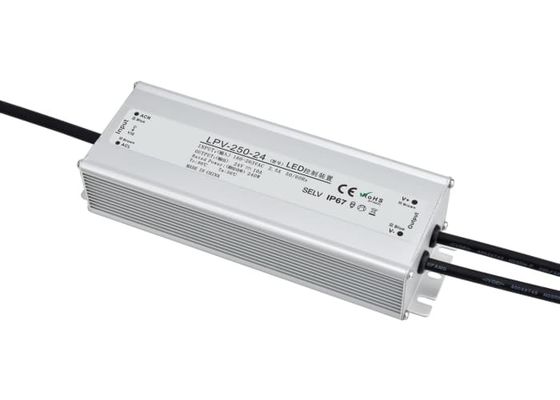

IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply
Product Description
| Modle | XH-LPV-250W |
| Output current range | 12V/24V/48V |
| DC output power | 250W |
| AC Input Current |
2.5A/230VAC |
| Store temperature and humidity | -40~+85°10-95% RH |
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) |
| Dimesion |
205*69*43mm(L*W*H) |
| Efficiency |
91% |
| Weight |
0.85kg |
Description
The XH-LPV-250W Series is a waterproof AC-to-DC LED driver power supply designed with constant voltage and constant power output. It operates on a wide AC input voltage range of 180~264VAC and offers a full range of output options including 12V, 24V, 36V, and 48V.
With a conversion efficiency of up to 93%, it features a fan-less design that operates via natural air convection cooling within a case temperature range of -20°C to +60°C. The metal housing and high IP65/IP67 protection rating make the XH-LPV-250W Series suitable for both indoor and outdoor applications. It is equipped with a long-life aluminum electrolytic capacitor rated at 105°C.
The XH-LPV-250W comes with comprehensive protection functions and a 5G vibration resistance capability. It complies with safety regulations such as UL1012 and EN60950-1, and meets the energy-saving requirements of next-generation LED lighting, providing a cost-effective solution for various LED lighting applications.
Key Advantages
Our Services
FAQ
4. Q: How long is the warranty period?
A: 3 Years
5. Q: How long is the delivery time?
A: For sample orders, we can send out the products as soon as we get the payment; For big orders, usually the delivery time is within 7 working days;OEM and ODM orders, within 15 working days.
