Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
궁금한 점이 있으시면 24시간 온라인 도움을 제공합니다.
x제품 상세 정보
| IP 클래스 | IP67/IP65 | 항목 이름 | LED 전원 공급 장치 |
|---|---|---|---|
| 쉘 재료 | 알루미늄 합금 | 작동 온도 | -20 ° C ~ 60 ° C |
| 제품 크기 | 265*120*56mm | 인증 | CE/FCC/ROHS |
| 출력 전력 | 800W | 색상 | 은 |
| 보호 | 단락/초과 온도/오버 하중 | 능률 | 94% |
제품 설명

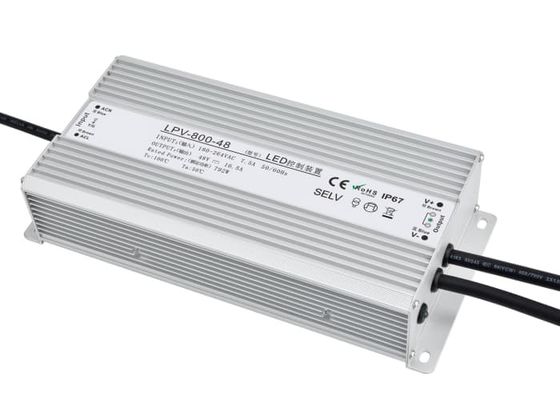

Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver
Product Description
| Modle | XH-LPV-800W |
| Output current range | 24V/36V/48V/60V |
| DC output power | 800W |
| AC Input Current |
7.5A/230VAC |
| Store temperature and humidity | -40~+85°10-95% RH |
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) |
| Dimesion |
265*120*56mm(L*W*H) |
| Efficiency |
94% |
| Weight |
2.75kg |
Description
The XH-LPV-800W series is a waterproof AC-DC LED driver. Engineered with constant voltage and constant power output, it functions with an AC input voltage spanning 180V to 264V. The entire series provides output voltage options of 24V, 36V, 48V and 60V.
Featuring a conversion efficiency of up to 94% and a fanless design, this driver relies on natural air cooling for operation, maintaining a case temperature range of -20℃ to +60℃. Its metal housing and high IP rating (IP65/IP67) enable the XH-LPV-650W series to be applied in both indoor and outdoor environments. Additionally, it is fitted with a 105℃ long-life aluminum electrolytic capacitor.
The XH-LPV-800W comes with full-range protection functions and can withstand 5G vibration. It complies with safety standards such as UL1012 and EN60950-1, and meets the energy-saving requirements of next-generation LED lighting. As a cost-effective option, it is suitable for a wide range of LED lighting applications.
Features
- AC Input Voltage: Ranges from 180VAC to 264VAC
- Output Mode: Operates in both constant voltage and constant power modes
- Protection Functions: Includes short circuit, overload, overvoltage, overtemperature protection, and other safeguards
- Cooling Method: Adopts natural air convection cooling
- Housing Design: Features an aluminum housing with a fully protective structure
- Protection Standard: Utilizes a full potting process, compliant with IP65/IP67 protection ratings, and suitable for both indoor and outdoor installation
- Applicable Environment: Suitable for dry, humid, and rain-exposed conditions
- Quality Testing: Subjected to 100% full-load burn-in testing before delivery
- Core Advantages: Delivers high efficiency, extended service life, and excellent reliability
- Warranty Service: Supported by a 3-year quality warranty
Our Advantages
- We have more than 20 years’ experience
- More than 100 foreign customers which have cooperated with our company for more than 3 years
- Small MOQ, helping you to cooperate with our company step by step.
- Warranty: 3 years warranty, as soon as we confirm the defective products,we will give new ones to customers in the following order
- Solving the problems for customers directly.
Our Services
- Replied in 24hrs
- Answer all your enquires in fluent English
- OEM & ODM are welcome
- Distributoership are offered for your unique design and some our current models
- Protection of your sales area, ideas of design and all your private informaton
- Provide lifelong warranty
- Fast delivery time: We will keep stock for some quantity of products;For samples orders,we can send out the products as soon as we get the payment;For big orders,usually the delivery time is within 7 working days;OEM and ODM orders,within 15 working days.
FAQ
1.Q;Why do you choose us?
A:We have over 20 years experience of design and produce led products for customers all over the world. We offer custom made led products with free design,and we have own factory as well as a research and design team,which can meet the diverse needs of our customers.
2.Q:Can I have a sample order for LED Power Supply?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
3.Q:Do you have any MOQ limit for LED Power Supply orders?
A: Low MOQ, 1pc for sample checking is available
A: Low MOQ, 1pc for sample checking is available
