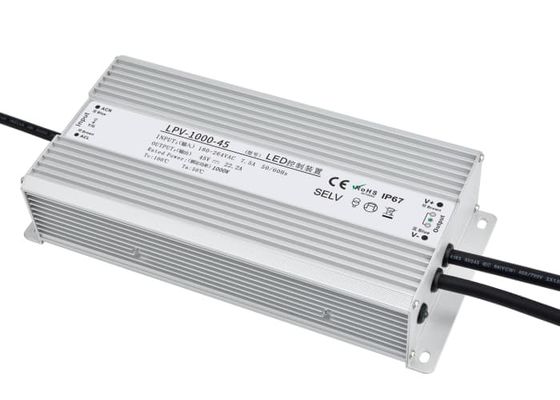

Wide Voltage IP67 Waterproof Switching Power Supply Constant Voltage Compact Size 1000W 24V36V48V LED Driver
Contact me for free samples and coupons.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x제품 상세 정보
| IP 클래스 | IP67/IP65 | 항목 이름 | LED 전원 공급 장치 |
|---|---|---|---|
| 쉘 재료 | 알루미늄 합금 | 작동 온도 | -20 ° C ~ 60 ° C |
| 제품 크기 | 265*120*56mm | 인증 | CE/FCC/ROHS |
| 출력 전력 | 1000W | 색상 | 은 |
| 보호 | 단락/초과 온도/오버 하중 | 능률 | 94% |
제품 설명
Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver
Product Description
| Modle | XH-LPV-1000W |
| Output current range | 24V/36V/48V/60V |
| DC output power | 1000W |
| AC Input Current |
7.5A/230VAC |
| Store temperature and humidity | -40~+85°10-95% RH |
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) |
| Dimesion |
265*120*56mm(L*W*H) |
| Efficiency |
94% |
| Weight |
2.75kg |
Description
The XH-LPV-1000W series is a waterproof AC-DC LED driver boasting constant voltage and constant power output, designed to work with an AC input voltage range of 180V to 264V. It offers versatile output voltage choices, including 24V, 36V, 48V, and 60V.
With a conversion efficiency of up to 94% and a fanless structure, the driver operates via natural air cooling, keeping its case temperature within -20℃ to +60℃. Thanks to its metal casing and high IP rating (IP65/IP67), it’s suitable for both indoor and outdoor use. It also incorporates a 105℃ long-life aluminum electrolytic capacitor for enhanced durability.
Equipped with full-range protection features and 5G vibration resistance, the XH-LPV-1000W adheres to safety standards like UL1012 and EN60950-1, while meeting the energy-saving demands of next-gen LED lighting. As a cost-effective solution, it fits a broad spectrum of LED lighting applications.
Features
- AC Input Voltage: Spans 180VAC to 264VAC
- Output Mode: Supports both constant voltage and constant power operation
- Protection Functions: Equipped with short circuit, overload, overvoltage, overtemperature protection, and other safety mechanisms
- Cooling Method: Employs natural air convection for heat dissipation
- Housing Design: Boasts an aluminum housing with a fully protective construction
- Protection Standard: Features a full potting process, meets IP65/IP67 protection levels, and is applicable for indoor and outdoor installation
- Applicable Environment: Suitable for dry, humid, and rain-exposed scenarios
- Quality Testing: Undergoes 100% full-load burn-in testing prior to delivery
- Core Advantages: Offers high efficiency, long service life, and superior reliability
- Warranty Service: Backed by a 3-year quality warranty
Our Advantages
- We have more than 20 years’ experience
- More than 100 foreign customers which have cooperated with our company for more than 3 years
- Small MOQ, helping you to cooperate with our company step by step.
- Warranty: 3 years warranty, as soon as we confirm the defective products,we will give new ones to customers in the following order
- Solving the problems for customers directly.
Our Services
- Replied in 24hrs
- Answer all your enquires in fluent English
- OEM & ODM are welcome
- Distributoership are offered for your unique design and some our current models
- Protection of your sales area, ideas of design and all your private informaton
- Provide lifelong warranty
- Fast delivery time: We will keep stock for some quantity of products;For samples orders,we can send out the products as soon as we get the payment;For big orders,usually the delivery time is within 7 working days;OEM and ODM orders,within 15 working days.
FAQ
1.Q;Why do you choose us?
A:We have over 20 years experience of design and produce led products for customers all over the world. We offer custom made led products with free design,and we have own factory as well as a research and design team,which can meet the diverse needs of our customers.
2.Q:Can I have a sample order for LED Power Supply?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
3.Q:Do you have any MOQ limit for LED Power Supply orders?
A: Low MOQ, 1pc for sample checking is available
A: Low MOQ, 1pc for sample checking is available
Led Power Supply Show
