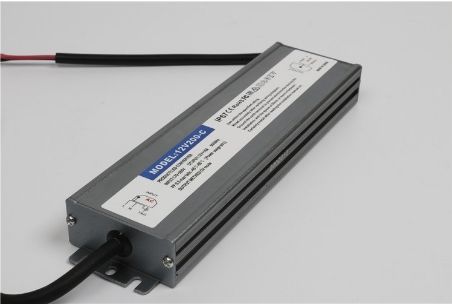

Factory Direct Sale Ultrathin Silent Led Switching Power Supply Led Driver Switch 110-240V Wide Voltage Power Supply
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
궁금한 점이 있으시면 24시간 온라인 도움을 제공합니다.
x제품 상세 정보
| 모델 번호 | XH-100W-B | 차원 | 225*53*19mm |
|---|---|---|---|
| 출력 전압 | 12V/24V | 출력 전력 | 100W |
| 입력 전압 | 170-265V | 능률 | 90% |
| 색상 | 어두운 회색 | 예어 | LED 드라이버 |
| 인증 | CE ROHS | 보호 | 단락/초과 온도/오버 하중 |
제품 설명
Factory Direct Sale Ultrathin Silent Led Switching Power Supply Led Driver Switch 110-240V Wide Voltage Power Supply
LED power supply description
An LED power supply—commonly referred to as an LED driver—is an essential component that ensures LED lighting runs safely and efficiently. It
converts incoming AC or DC power into the stable voltage and current required by LEDs.
By regulating power output, it protects LEDs from voltage fluctuations, overheating, and early burnout. Depending on the application, LED power
supplies come in constant voltage or constant current models, and many are designed with added features such as dimming capability,
waterproof housing, or surge protection for enhanced performance and reliability.
Key Functions of an LED Driver:
Voltage Conversion
An LED driver transforms incoming AC power into the precise DC voltage required for LEDs to operate safely.
Current Regulation
It maintains a steady current flow, ensuring LEDs run at peak performance while preventing overheating or damage.
Protection from Power Fluctuations
Built-in safeguards protect LEDs against overvoltage, undervoltage, and other irregularities in the power supply, extending their lifespan.
Advanced Features
Many modern LED drivers include dimming functionality and additional options not available in standard power supplies, allowing for greater
control and flexibility.
LED power supply specificatoion
| Model | XH-100W-B | XH-24100-B |
| DC output voltage | 12V | 24V |
| Rated output current | 33.3A | 16.6A |
| Output current range | 0~33.3A | 0~16.6A |
| DC output power | 100W | 100W |
| Efficiency | 90% | 90% |
| Input voltage | AC 170-265V | |
| Waterproof level | IP67 | |
| Working temperature and humidity | -30~+50 centigrades 20-99% RH non-condensing(waterproof) | |
| Store temperature and humidity | -40~+80centigrades 10-99% RH | |
| Weight | 0.4kg | |
| Dimension | 225mm*53mm*19mm | |
LED power supply Protections:
1. Short Circuit: protection mode(revocers automatically after fault condition is removed.) So,if your power supply not work,please wait for 30 seconds,then start it again.Maybe its self-protection worked.
2. Overload Protection
3. Overtemperature:Protection model(shut down output votlage,work again after re-started.
Our Services
♦♦ Our led power supply Service
1. Replied in 24hrs
2. Answer all your enquires in fluent English
3. OEM & ODM are welcome
4. Distributoership are offered for your unique design and some our current models;
5. Protection of your sales area, ideas of design and all your private informaton
6. Provide lifelong warranty
7. After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.
Applications
♦♦Led power supply Applications
1. Power For led strips,led modules,led pixel lights,
2. Power For outdoor lamps,led street lamps,led downlight,led flood light and so on
3. Power For CCTV,
4. Office lighting, Artwork lighting, Display case
5. Home lighting
6. Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
7. Hotel, Restaurant lighting
8. Other public lighting
Company Information
♦♦ Shenzhen Xinhe Lighting Optoelectronics Co., Ltd.
- Specialized in semiconductor illumination and lighting products, and is an integral companyintegrating designing, developing, manufacturing, and sale.
- We focus on the appliance products in advertising and lighting area, and establish the long term business relationship with large advertisement material distributors.
- With topping technology talented persons, advanced management, efficient staff team, our company tries our best to create well-known brand in semiconductor illumination field.
- Our company bases on LED encapsulation, making the best lighting deploying projects in allusion to different LED appliance field.
- Our company captured the chance of revolution of world illumination industry, and formed application department.
- Our extended series products are as: the LED modules for advertising lighting, specialized LED switch power supply, LED RGB controllers, LED open signs, super LED straight lighting words and other related products.
LED power supply Show
