100mm 24V Single Color LED Point Light Source IP67 Waterproof Outdoor Pixel Light for Facade Building Wall Decoration
제품 상세 정보
| 크기 | 100mm | 힘 | 5W |
|---|---|---|---|
| 작업 전압 | DC24V | 색상 | 단색(따뜻한 흰색, 차가운 흰색, 빨간색, 녹색, 파란색, 호박색) |
| 빔 각도 | 120° | IP 등급 | IP67 |
| 하우징 재료 | PC | 수명 | ≥50000시간 |
| 작동 온도 | -20°C ~ 60°C | 제어 모드 | 정전류(켜기/끄기) |
| 애플리케이션 | 옥외 건물 외관, 벽 장식, 조경 조명 | ||
| 강조하다 | 24V single color LED point light,IP67 waterproof point light source,outdoor architectural facade pixel lights |
||
제품 설명

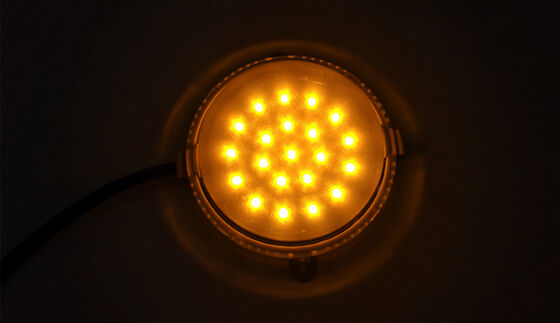

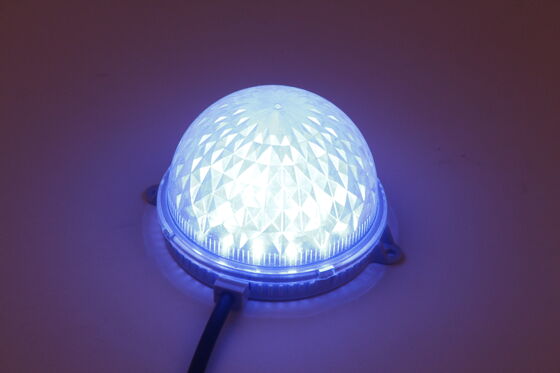

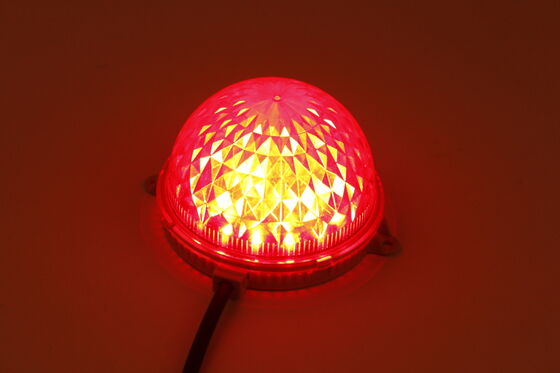

100mm 24V Single Color LED Point Light Source IP67 Waterproof Outdoor Pixel Light for Facade Building Wall Decoration
The XH-G10021S36 100mm single color LED point light source delivers reliable and elegant illumination for outdoor architectural projects. Operating on a safe and efficient 24V DC low-voltage system, this IP67 waterproof pixel light is engineered for building facades, exterior wall decoration, landscape lighting, and large-scale architectural installations. With its robust PC housing and constant current drive, it ensures stable monochrome output with minimal maintenance over a long service life.
Technical Specifications
| Model Number | XH-G10021S36 |
|---|---|
| Size | 100mm (Diameter) |
| Power | 5W |
| Work Voltage | DC24V |
| Color | Single Color (Warm White 3000K, Cool White 6000K, Red, Green, Blue, Amber) |
| Beam Angle | 120° |
| IP Rating | IP67 |
| Housing Material | High-Strength PC (Polycarbonate) |
| Lifespan | ≥ 50,000 Hours |
| Operating Temperature | -20°C to 60°C |
| Control Mode | Constant Current (On/Off) |
| Wire Gauge | 2-Core Waterproof Cable, 15cm Standard Length |
| Weight | Approx. 120g per Unit |
| Certifications | CE, FCC, ROHS |
Key Product Advantages
24V Safe Low-Voltage Operation — The DC24V design ensures electrical safety for exposed outdoor installations while maintaining stable and efficient power delivery across long cable runs, reducing voltage drop concerns in large-scale projects.
IP67 Fully Sealed Waterproof Construction — Engineered for all-weather performance, the fully encapsulated PC housing prevents water ingress, dust accumulation, and corrosion. Rated IP67, this point light source withstands heavy rain, snow, and high-humidity environments without performance degradation.
Consistent Single Color Output — Unlike RGB variants, the single color version delivers unwavering color temperature and brightness uniformity across every pixel. Ideal for projects where consistency and simplicity are paramount — no DMX controllers or complex programming required.
Lightweight & Easy Installation — At just 120g per unit with a compact 100mm diameter, the XH-G10021S36 supports multiple mounting methods including surface-mount, recessed, and wire-suspended configurations. Pre-terminated waterproof connectors enable fast plug-and-play installation.
Proven Longevity — High-quality LED chips and constant current driver technology deliver a rated lifespan exceeding 50,000 hours, significantly reducing replacement costs and maintenance intervals for permanent outdoor installations.
Application Scenarios
Building Facade Lighting
Illuminate commercial buildings, hotels, and office towers with uniform point light arrays.
Illuminate commercial buildings, hotels, and office towers with uniform point light arrays.
Exterior Wall Decoration
Create elegant starry-sky effects and contour lighting on architectural walls.
Create elegant starry-sky effects and contour lighting on architectural walls.
Landscape & Garden Lighting
Enhance parks, gardens, pathways, and waterfront promenades with ambient point illumination.
Enhance parks, gardens, pathways, and waterfront promenades with ambient point illumination.
Bridge & Infrastructure
Highlight bridges, viaducts, and public structures with durable outdoor-rated pixel lights.
Highlight bridges, viaducts, and public structures with durable outdoor-rated pixel lights.
Commercial Signage
Add visual impact to storefronts, billboards, and brand signage with programmable dot patterns.
Add visual impact to storefronts, billboards, and brand signage with programmable dot patterns.
Holiday & Event Decoration
Deploy for Christmas, festivals, and celebrations with fast, modular deployment.
Deploy for Christmas, festivals, and celebrations with fast, modular deployment.
Service & Support
- 20+ years of LED manufacturing expertise with ISO-certified production facilities
- Flexible low-volume MOQ supports new business development and sample evaluation
- 3-year warranty on all products with quick replacement for any defective units
- OEM & ODM customization available for color temperature, cable length, and mounting solutions
- Professional English-speaking sales and after-sales team for seamless communication
- 24/7 online support with prompt response to technical inquiries and order tracking
Frequently Asked Questions
Q: Can I order a sample for testing?
Yes, we welcome sample orders. Single piece samples are available for quality evaluation.
Q: What single colors are available?
Warm White (3000K), Cool White (6000K), Red, Green, Blue, and Amber. Custom wavelengths available upon request.
Q: Is the 24V version compatible with my existing power supply?
The XH-G10021S36 operates on standard DC24V. We can also provide matching power supply units and wiring accessories for your installation.
Q: What is the lead time for bulk orders?
Samples ship within 1-3 working days. Mass production typically requires 7-15 working days depending on order quantity.
Q: Do you support logo printing or custom packaging?
Absolutely. OEM services including logo printing, custom color boxes, and tailored packaging solutions are available.
